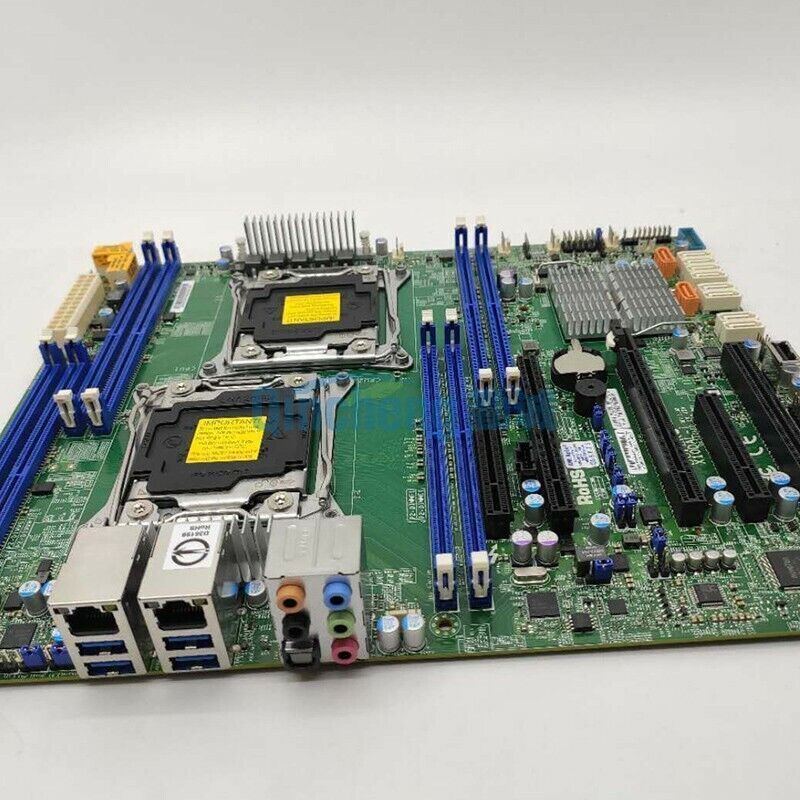

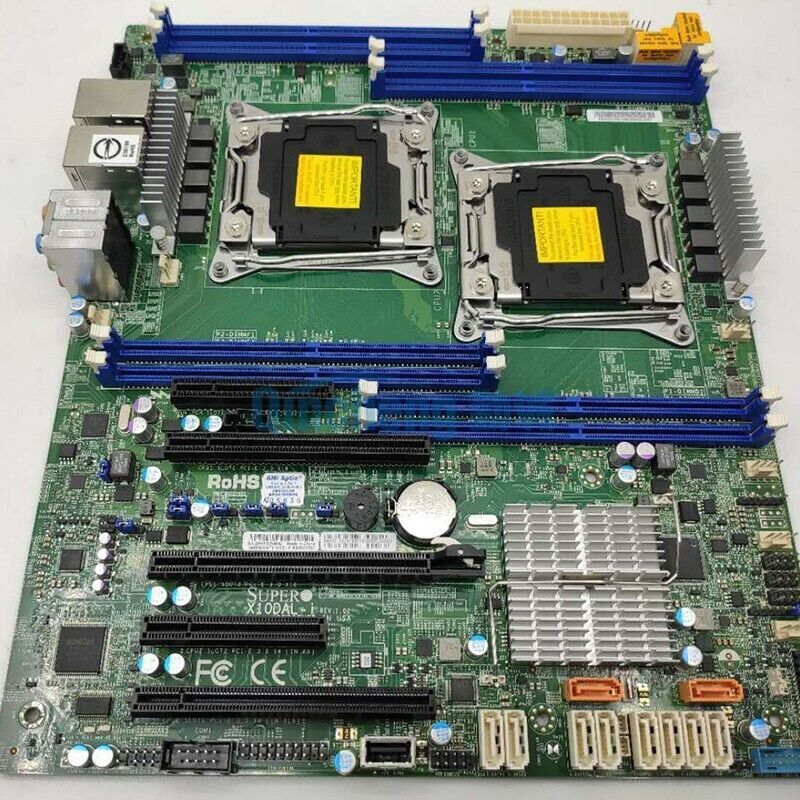

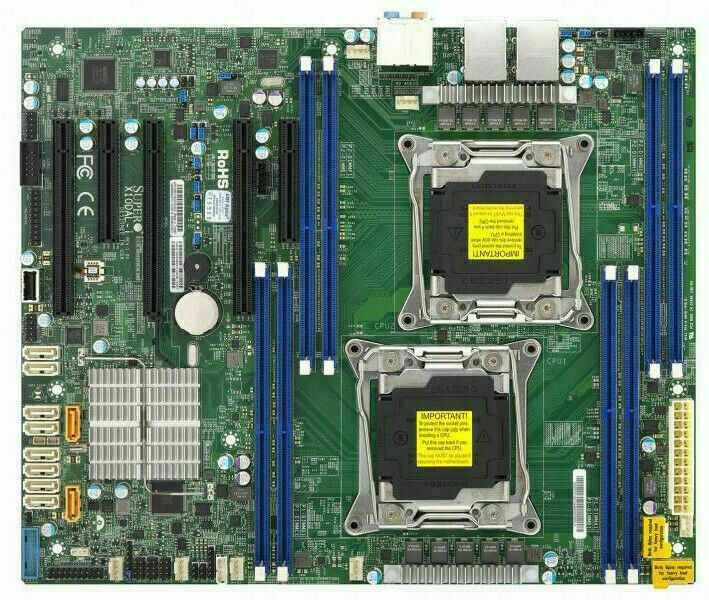

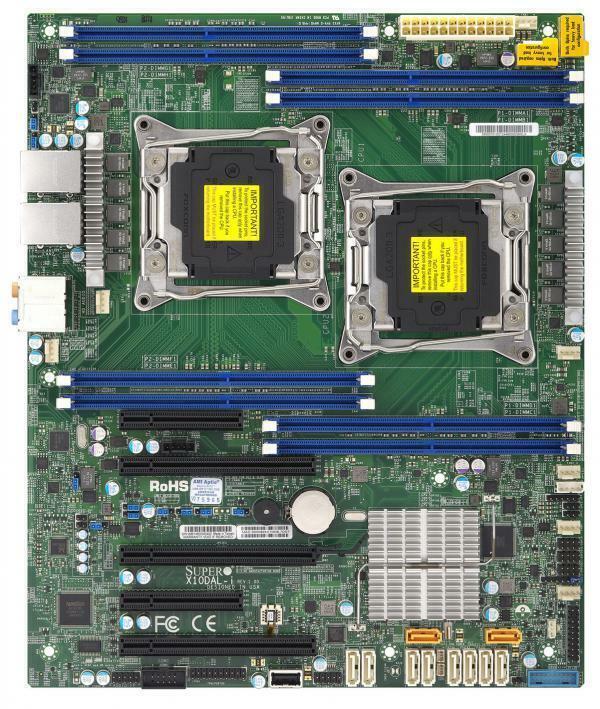

SuperMicro X10DAL-I ATX Server Motherboard Dual LGA 2011-3 Intel C612 DDR4 SATA
SuperMicro X10DAL-I ATX Server Motherboard Dual LGA 2011-3 Intel C612 DDR4 SATA
Welcome to here, thank you for viewing our page. We will provide you best serviceand high quality products.
Note: Photo above is only for illustration purposes.
Item Including: 1 pcs motherboard,no other accessories included.

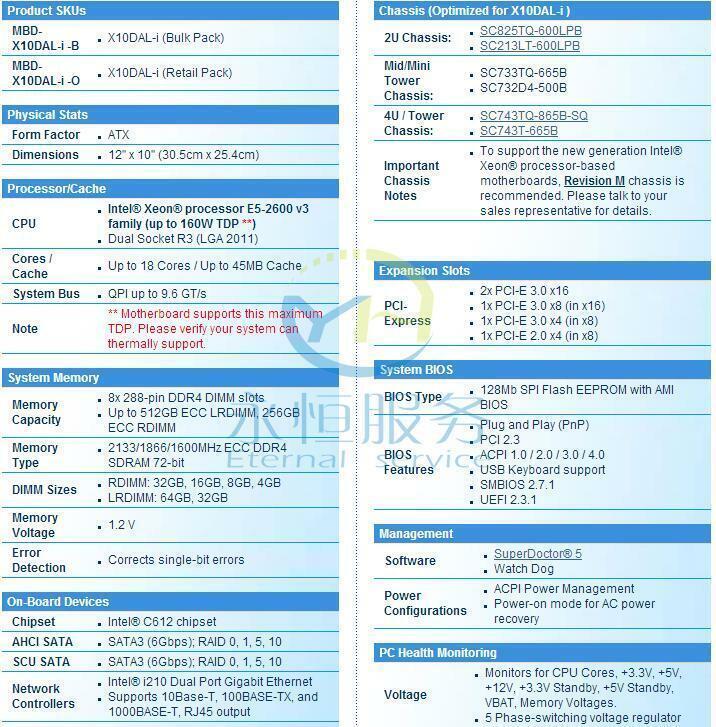

Physical Stats Form Factor ATX Dimensions 12" x 10" (30.48cm x 25.4cm)
Processor/Cache CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s Cores / Cache Up to 22 cores † / Up to 55MB† cache Note † BIOS version 2.0 or above is required Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory Memory Capacity 256GB ECC RDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors
On-Board Devices Chipset Intel® C612 SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller Audio 7.1 HD Audio
Input / Output SATA 10 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports USB 3 USB 2.0 ports (2 headers, 1 Type A) 6 USB 3.0 ports (4 rear + 2 headers) Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 2 PCI-E 3.0 x16 (in x16 slot), 1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x4 (in x8 slot) 1 PCI-E 2.0 x4 (in x8 slot)
System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1
Management Software SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery
PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, VBAT FAN 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED Other Features Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC 5% - 95% (non-condensing)
Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range Shipping:
