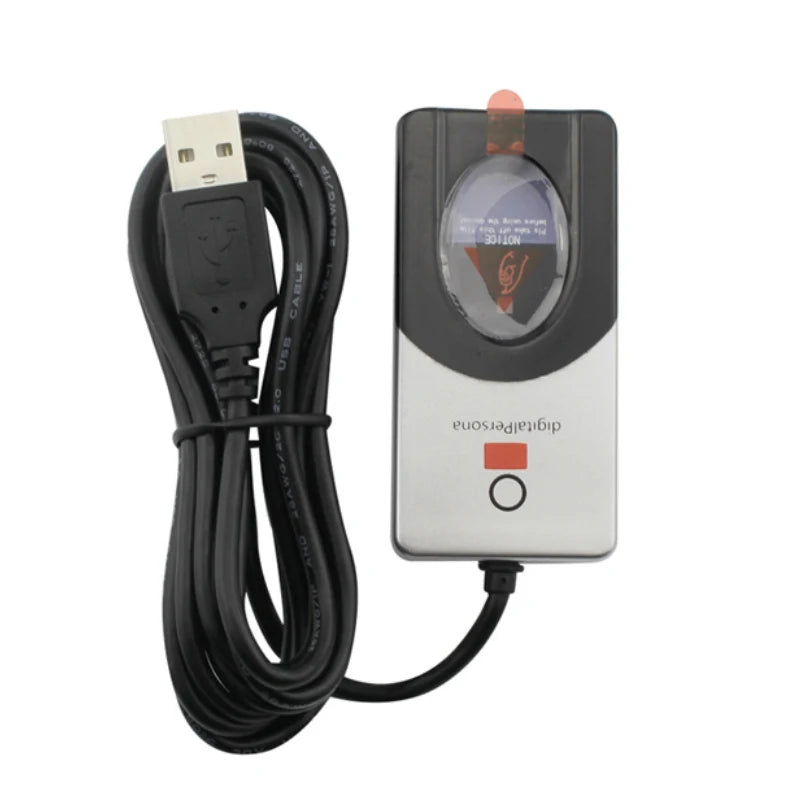

URU4500 Digital Persona U4500 Fingerprint Reader with USB Scanner SDK URU5000 URU4500 USB Biometric Fingerprint Scanner Fingerprint Reader

Environmental parameters:

● Supply voltage: 5.0V +/-0.25V USB provided

● When taking fingerprints: 190mA (typical)

● When idle: 140mA (typical)

● When suspended: 1.5mA (max)

● Antistatic: >15 KV

●Working temperature: 0°C-40°C

● Operating Humidity: 20%-80%

Image data: 8-bit grayscale

● Compatible standards: FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL, VCCI

Third, specifications:

● Pixel Sharpness: 700DPI

● Image capture area: 14.6mm (central standard width); 18.1mm (standard length)

● 8-bit grayscale

● product size: about 65mm*36mm*16mm

● Compatible with USB1.0, 1.1, 2.0



Fourth, characteristics:

●Small size

● Excellent image quality

● Encrypted image data

● Rejecting latent fingerprints

● reject falsified images

● Support rotary fingerprint

● Rough fingerprint processing

● Dry, wet or rough fingerprints can be used well

● Compatible with all U.are.U applications and development tools, supporting Biokey development tools

● Support JAVA development tools

● Driver support Windows98, Me, NT4.0, 2000, XP, Vista, Windows Sever 2000, 2003, 2008
