1.      Brief introduction

This product is 58mmLine thermal sensitive printer, this specificationThe program developer used to guide the user is targeted 58mm

Do hardware development, assembly, program computer development and so on.

2.      Product safetyPrecautions

The following requirements are made to ensure safe and effective use of the product.

2.1 Print head

1To avoid Termal printing head is corroded, do not touch the surface of the heat body by hand.

2)To avoidThermal print headCorrosion, please use ethanol orIPAWipe the confetti on the surface of the heat body.

3) Keep the surface of heating element dry. If water enters accidentally, please turn off the power immediately.

4) The printer must not print without paper, otherwise it will seriously damage the printing cots and thermal print heads.

2.2 Printing paper

1The print paper is wide57.5±0.5mm.

2Print paper needs to be stored in a dry environment to avoid moisture.

3In order to ensure the printing quality and product life, it is recommended to use the thermal printing paper recommended by the manufacturer. Print rolls should have paper shafts.

4Thermal print paper content preservation period is generally only a few months, choose long-lasting thermal printing paper can be limited to extend the storage time.

2.3Exception handling in use

1When paper jams due to inappropriate paper installation or paper quality issues, turn off the printer and wait10After the print head cools down in seconds or so, open the paper silo to clean up the paper jam and reload the paper.

2)When the printing process is terminated unexpectedly, the printer must be restarted to recover.

3) If any abnormality is found during use, please turn off the printer. If it cannot be turned off, please remove the battery and forcibly turn it off.

3.      Performance specifications

3.1 Print performance

way of print	That's OK thermal sensor
Print resolution	384dot/Row (8dot/mm)
print speed	40~80mm/s
Effective print width	48mm

3.2 Print paper specifications

Recommended thermal paper

TF50KS-EorAF50KS-E

3.3 Print characters

The Character In Western	ASCIIcharacter set12×24English song typeface,1.5(width) ×3.00(high),32Characters/Yes
Chinese characters	GBKChinese character library,24×24Chinese song typeface,3.00(width) ×3.00(high),16Characters/Yes
Row and column alignment	Center and left right alignment are optional

3.4 The interface method

serial interface

Serial port baud rate115200bps,1Bit start bit,8Number of bits, data bits,1Bit stop bit

3.5 Printable content

Printable content

Text (Chinese and English), one-dimensional barcode (EAN13,EAN8,Code128,Code39),QRQR code, black and white images (different density points and download pictures)

3.6reliability

Print head life

50kilometre

3.7 The working environment

Temperature and humidity of working environment	operating ambient temperature-10～50The humidity of working environment10～80％
Temperature and humidity of storage environment	Store ambient temperature-20～60The humidity of storage environment10～90％

4.      Hardware specifications

4.1External interface and definition

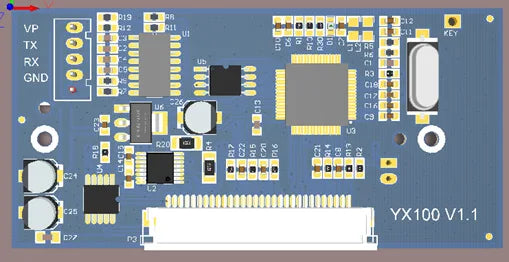

Serial interface definition
Pin number	name	illustrate
1	VP	Power supply dc5 ～ 8.5V, current 2.5A
2	TXD	Serial data transmission (default TTL3.3V optional RS232 level)
3	RXD	Serial data reception (default TTL3.3V optional RS232 level)
4	GND	earth
5	NC	Hold (handshake signal or busy line signal, etc.)





4.2  Self test mode

 When the power is off, short circuit the key (test point) to GND. After power on, you can enter the self-test mode. During self-test, please keep the paper on the printer core. After power on again, you can exit the self-test mode



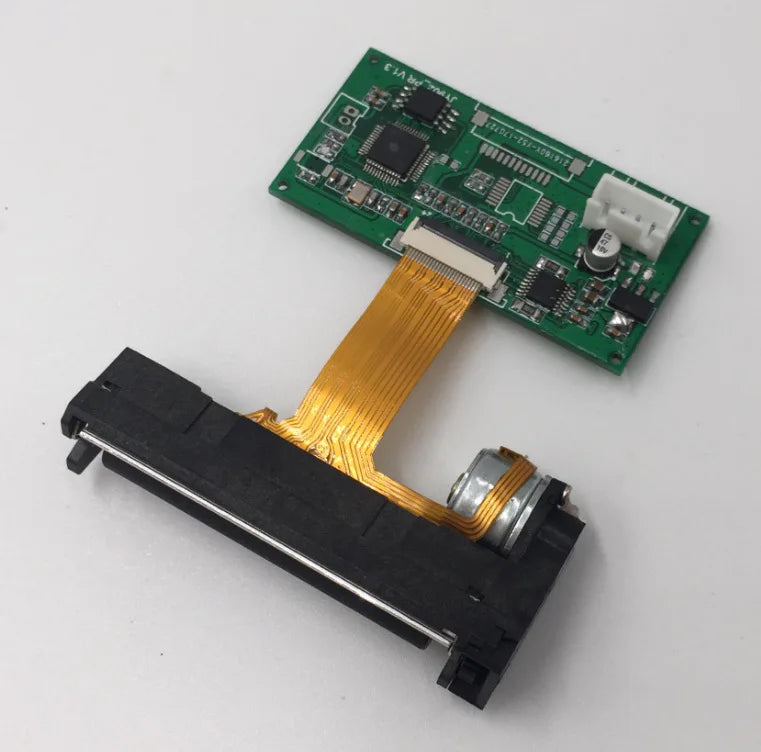

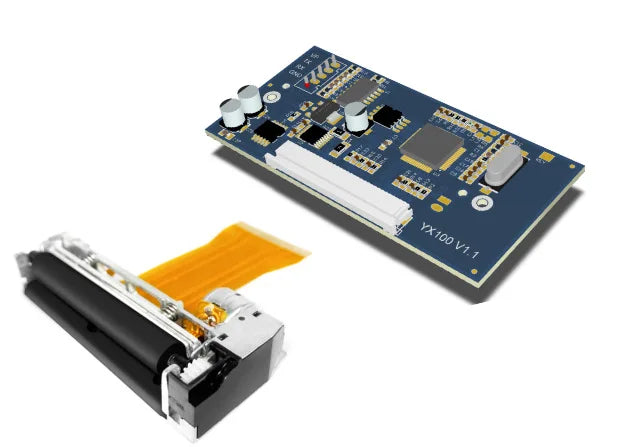

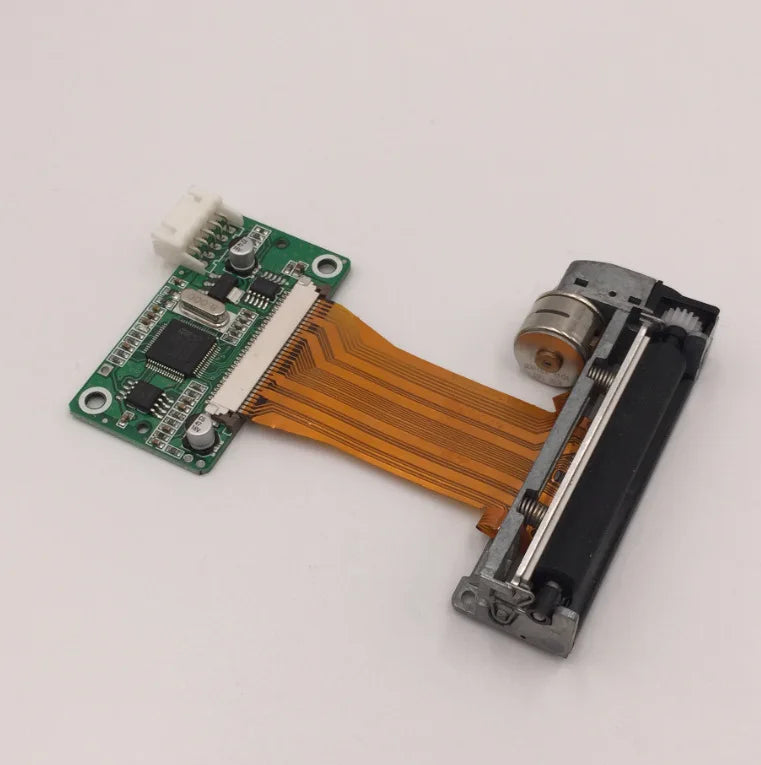

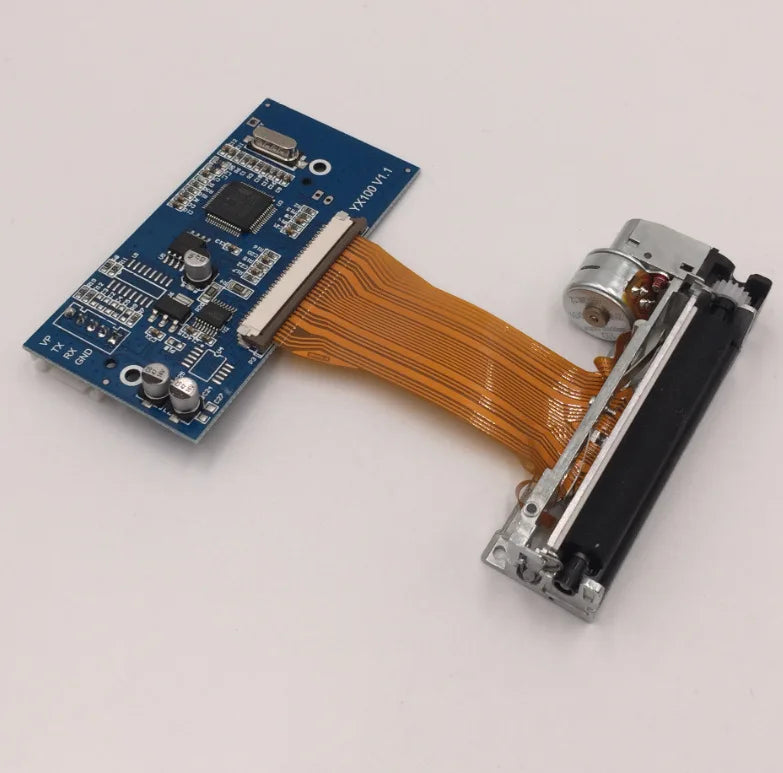

4.3 and nbsppcb molecules

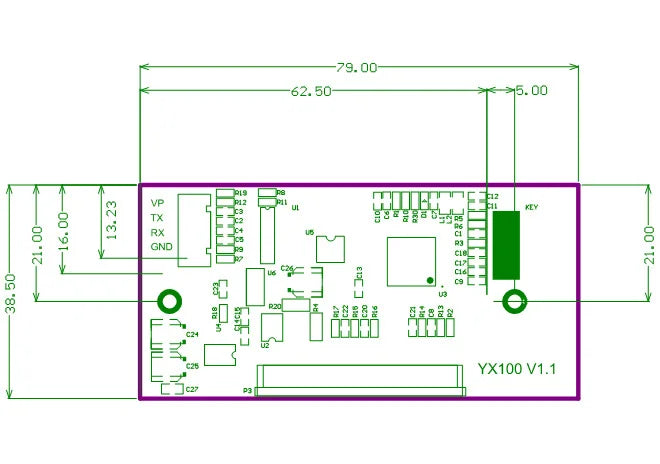

Unit: mm

Tolerance + / - 0.1 mm

Specifications:
Material: ABS, metal
Applicable models: For Fujitsu Seiko 2 inch print head driver board YX100 V1.1
Package included:
1 x board

Notes:
Please allow 0-2mm error due to manual measurement, thanks for understanding.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, thank you!
